Meton Connect - Device Controllers' Gateway | Infoscope Hellas: Innovative Web Services & Telemetry

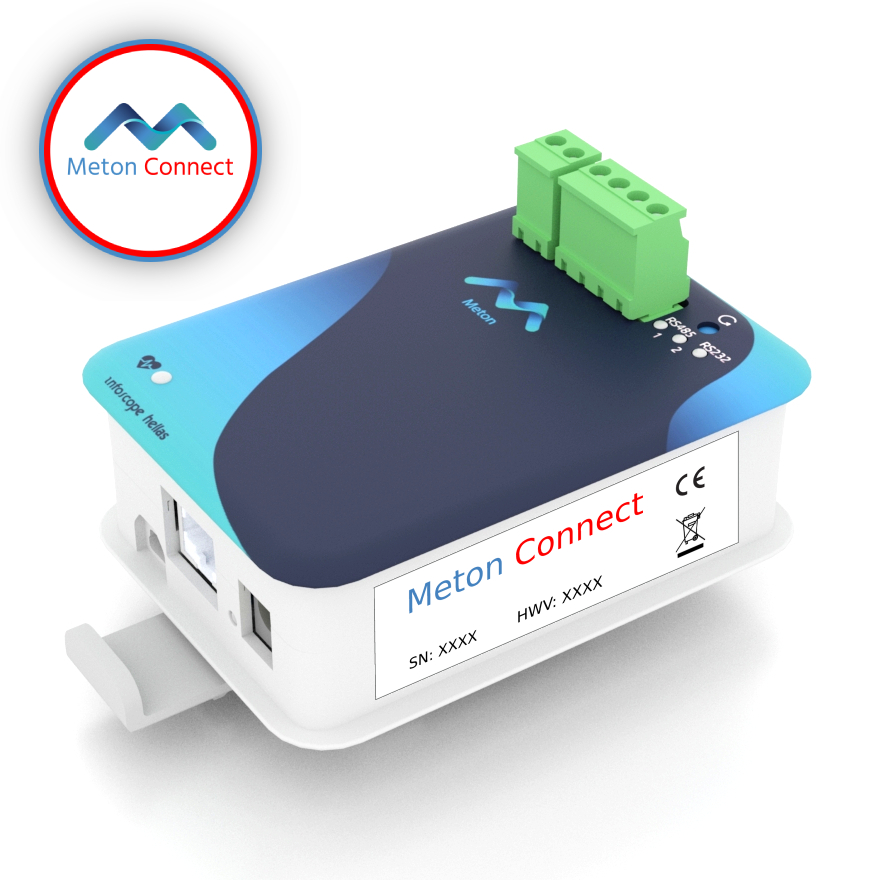

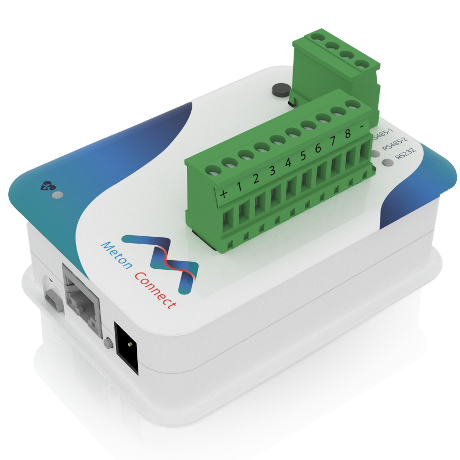

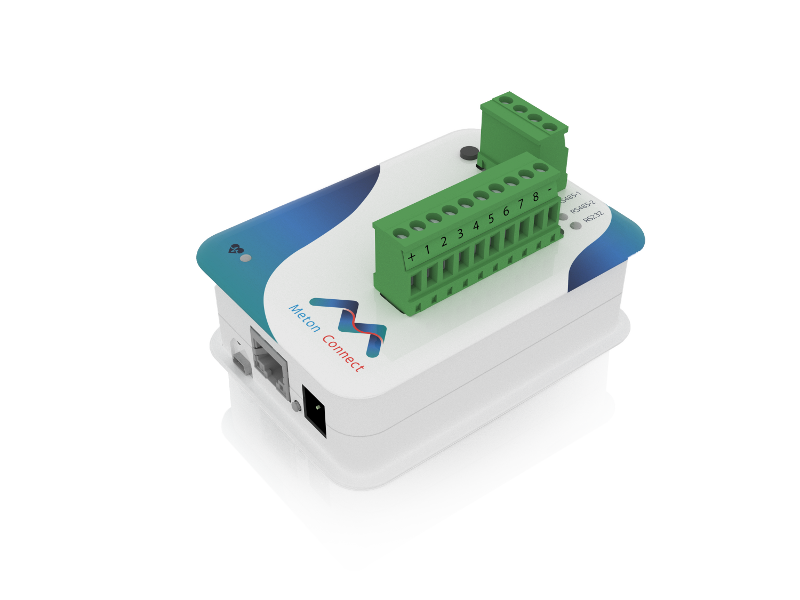

Meton Connect - Device Controllers' Gateway

Description

Temperature and digital data logging (Evaporator, Compressor, Defrost, Fan, Alarms, etc.) from connected devices and controllers (Refrigerators, Freezers, Refrigeration Chambers, Pasteurizers, etc.) of all popular brands via Modbus
Proper operation rules & notification configuration through extremely user friendly interface (on a personal computer or tablet)
Alarm notification even when the data logger itself is not working / communicating properly
Data are available online: Very easy data export, event log, realtime overview by any pc/tablet (cloud login)

Immediate Benefits

Saves time - manual logging no longer necessary
Expedites HACCP / ISO protocols' compliance
Temperature (and other) data are easily accessible in case of an unannounced inspection
Assures that cooling rooms, refrigerators, freezers etc are keeping accurately the temperature set
Can be connected (through modbus protocol) to device controllers and receive specific data directly from them (e.g. cold room evaporator temperature)
Supports a large number and wide variety of devices
Can monitor the energy consumption of each device / floor / sector / building
Immediate notification in case of malfunction/damage through e-mail/sms/phonecall, regarding the emergency of the event

Special features

Αutomatic start/stop of recordings with a higher sampling rate for more detailed monitoring of specific processes
Our data logger is preconfigured for you.
No software installation required
Software updates are performed automatically without user interference
Connection with existing equipment (heat pumps, automation etc)
Expandable (additional devices, e.g. for energy metering)
EN 12830:2018 compliance for vulnerable product temperature monitoring
Automated weekly report for each interconnected device of the equipment, pointing out deviations / pottential malfunction
Designed in Greece / Produced in the EU

Full compliance with the EN-12830:2018 standard 'Temperature recording during transport, storage & distribution of temperature-sensitive goods - Tests, performance, suitability' as an end-to-end cloud SaaS system with class IIIb software certification (according to WELMEC 7.2), suitable for storage (S) applications with an accuracy of 0.5 in the measurement range -30...45°C, for temperature recording in temperature-sensitive products.

Manual / Files:

Datasheet_Meton_Connect_vA4.0421_EN.pdf

CE_DoC_Meton_Connect_D031123.pdf

Data from controllers of refrigerators, refrigeration chambers, and other devices - measurement of specialized parameters

Language English

Ελληνικά

Meterscope Data Collection System

Brief presentation of all the available gateways/data loggers & features

Meterscope Portal - Cold rooms, freezers, refrigerators, curing chambers, kettles, ovens temperature - Level & pressure in tanks, pumping, stations, production lines - Fluid flow: Water, effluent etc - Energy consumption

Meterscope provides compact solutions for small enterprises, supports complicated and large scale modular projects and can be customized to cover specific demands: Meton IoT Devices can be connected to a wide variety of sensors or controllers that support communication protocols and collect the most significant data, depending on each business/industrial sector.

Temperature Data Logger - Meton EASE

Wireless temperature / humididty / digital input data logger for compact application

Temperature / humidity monitoring for up to 2 cold rooms, freezers, refrigerators, curing chambers, storage places etc, along with 2 digital inputs (door open, on/off function etc) & 1 digital output (relay, siren, light)
Local WiFi connection - easy and low cost internet service
Strong Battery / Low consumption: Can function for at least on month without power supply.

Wireless Temperature Gateway - Meton Wireless

Plug & play wireless temperature gateway very easy to install

Monitoring temperature and digital inputs (operational status, door status, etc.) of refrigeration chambers, refrigerators, freezers, product storage areas, and other devices wirelessly.
Sensors communicate via the industrial wireless mBus protocol for greater reliability and energy saving.
Autonomous sensors with the ability to be placed even within chambers and a battery life of up to 14 years!
Data collection from numerous points and easy to expand

Temperature Data Logger - Meton Sense & Sense Plus

Τemperature / humididty / digital input data logger supporting 8 on board inputs and expansion modules

Cold rooms, refrigerators, curing chambers, kettles, ovens and custom equipment temperature
Digital input (normally open/normally closed, function) & outputs (relay, siren, light)
Extensive sensor options (RTDs: Pt100, Pt1000, 2 or 3 wire, Thermistors: NTC or PTC, Thermocouple K, J, generic signal transmitters 4...20mA, 0-10V) for a vast temperature range (-200°C to +1800°C), high metering accuracy and long-distance coverage with the Meton Sense Plus

Meton Sense - Wireless Addon Extra Features

Wireless sensors allowing for extra long battery life (up to 14 years!) &
Industrial communication protocol, providing strong encryption
Long range reception, covering whole building blocks / serveral floors in urban area
Waterproof IP65, polycarbonate cabinet
Autonomous internet connection (3G Modem) for stand alone installation or fallback handling in case of bad network
Power supply back up (UPS) for energy autonomy and monitoring under power outage condition

Device Controllers' Gateway - Meton Connect & Connect Plus

Collecting data directly from the interconnected devices' controllers

Recording of data (temperature, operational status of individual components, digital contacts) of cooling control devices, refrigeration chambers, refrigerators, freezers, product storage areas, etc. Interfacing with a variety of controllers (e.g., Dixell, Pego, Eliwell, LAE, etc.) widely used in professional spaces that support the Modbus Protocol
Monitoring of energy data (energy consumption, power, network voltage, current) in conjunction with a smart energy meter
Capability to collect analog/digital data from integrated sensors with Meton Connect Plus

Advanced Recording System - Meton Prime

Specialized data collection system

Recording of data (temperature, humidity, level, pressure, energy consumption, power, voltage/current, status of individual components, digital contacts) from cooling units, heating systems, transmitters, cooling towers, boiler rooms, etc.
Integration with a variety of controllers, specialized devices, and PLCs
Ability to collect analog/digital data from specialized sensors (liquid flow, hydrometry data, conductivity, ethylene concentration, heat pump operation, specialized scales, etc.)

Explore Meton Prime, for measurement and data recording from sensors of all types.

Laboratory Equipment Monitoring Gateway - Meton Lab

Data Collection Recorder for Laboratory / Medical Equipment

Data recording (temperature, level, operational status, digital contacts, alarms) of laboratory devices, ultra-freezers, etc., in hospitals, pharmacies, stem cell / graft banks, etc.
Measurement accuracy up to +/- 0.15oC with specialized sensors and focus on temperatures from -40 to -185 degrees Celsius
Interface with models of ultra-freezers and liquid nitrogen containers for the storage of stem cells/grafts (e.g., ThermoFisher Scientific Thermoforma 700 Series / 7402 / 7403, NEW BRUNSWICK SCIENTIFIC U410, Airliquide Espace 151 / RCB 600 / Arpege 170, Baglioni CryoBA, Taylor Wharton CryoCe24K, etc.)
Enhanced device connectivity and simplified installation processes through wireless integration, leveraging the widely adopted Modbus communication protocol and transforming traditional wired setups into a seamless wireless mesh network

Read more about Meton Lab
