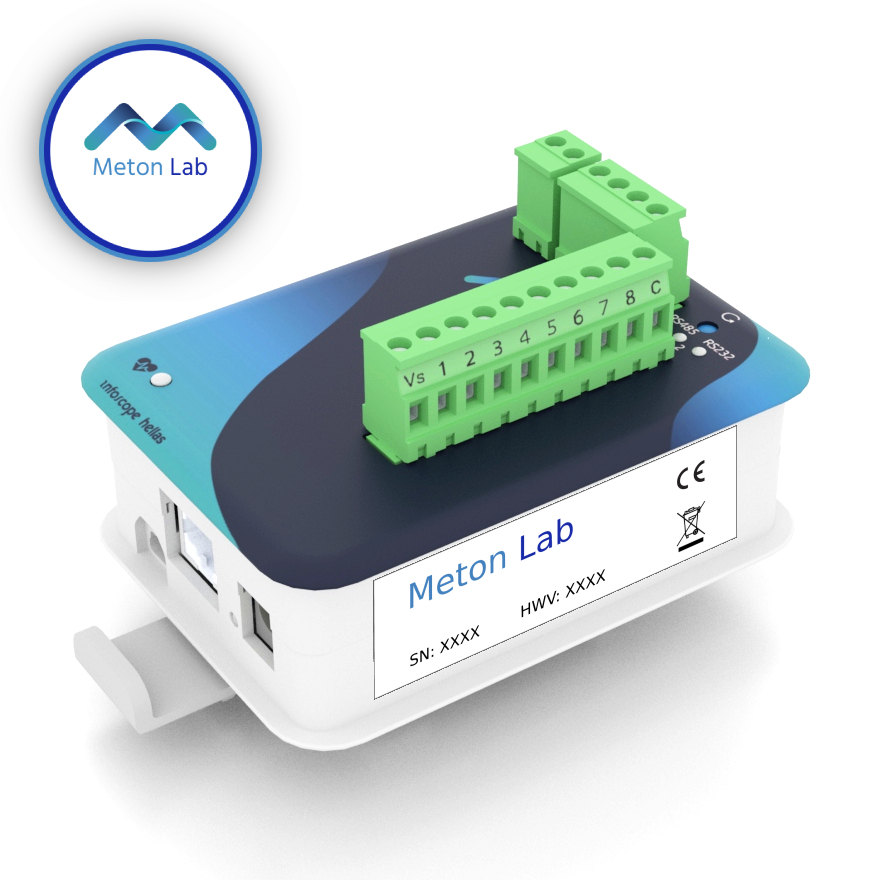

Meton Lab - Laboratory Equipment Monitoring Gateway

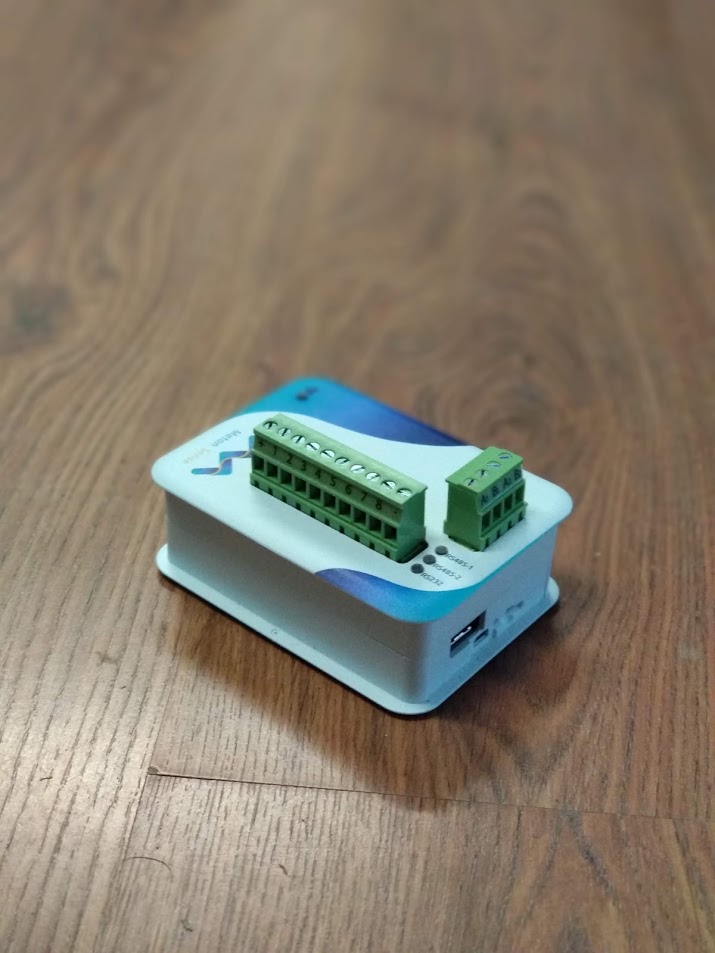

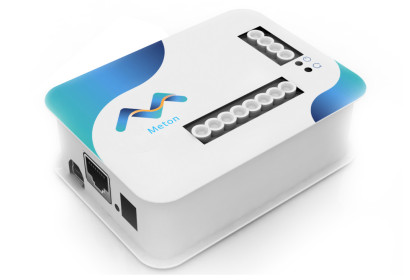

Meton Data Logger / Gateway

Meton IoT Devices can be connected to a wide variety of sensors or controllers that support communication protocols and collect the most significant data, depending on each business/industrial sector.

Meton IoT data logger serves as a gateway that supports industrial & commercial equipment integration. Each Meton is connected to Meterscope Manager Web Portal, which provides a wide variety of tools & features.

Meton of Athens was a Greek mathematician, astronomer, geometer, and engineer who lived in Athens in the 5th century BC. He is best known for calculations involving the eponymous 19-year Metonic cycle

Meton Lab gateway: Hospital, lab & pharmaceutical industry equipment monitoring - Cryogenic / Cryostorage system & liquid nitrogen supervision, hospital, laboratory & pharmaceutical industry equipment monitoring, super low temperature data logging, wireless M-Bus & Modbus protocol gateway

Meton Lab is a specialized variant incoroprated within the Meton gateways, focusing on lab equipment:

Pharmaceutical industry
Hospitals
Graft / stem cell banks
Laboratories

Lab equipment integration: Alarms / data / information from laboratory / pharmaceutical equipment devices

Wireless Sensors (wM-Bus)

Modbus RTU / TCP / ASCII gateway (industrial communication protocol integration)

High accuracy sensors up to +/- 0.15oC

Extra safety features / proper operation rule set / alarm notification for valuable & vulnerable items (vaccines, tissues, grafts, stem cells, medicines)

Great variety of sensors (RTDs: Pt100, Pt1000, 2 or 3 wire, Thermistors: NTC or PTC, Thermocouple K, J, generic signal transmitters 4...20mA, 0-10V)

Focus on super low temperature ( -40 up to -200 Celcius),

Calibration of sensors in accredited laboratory

Application

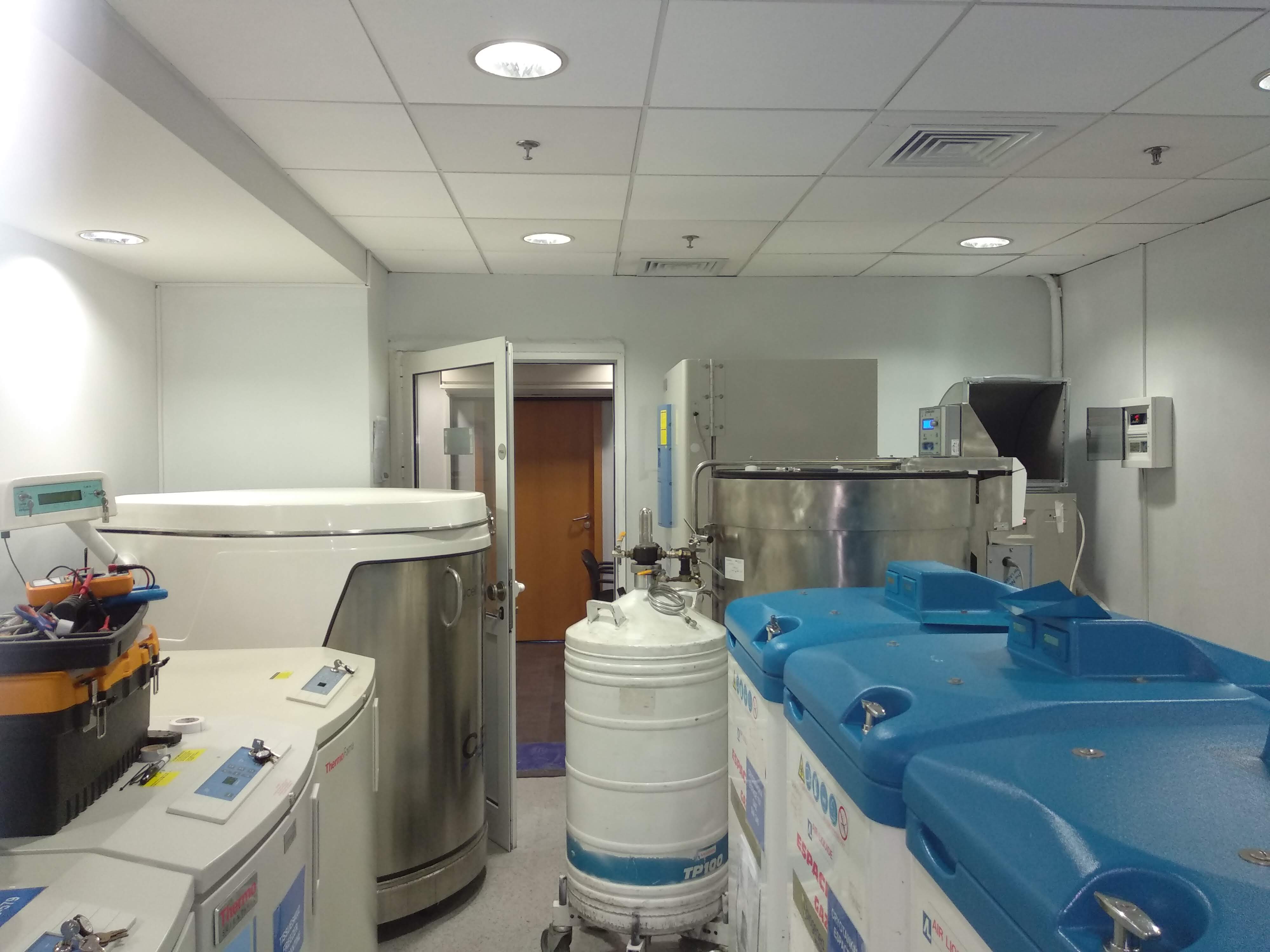

Cryogenic / Cryostorage systems

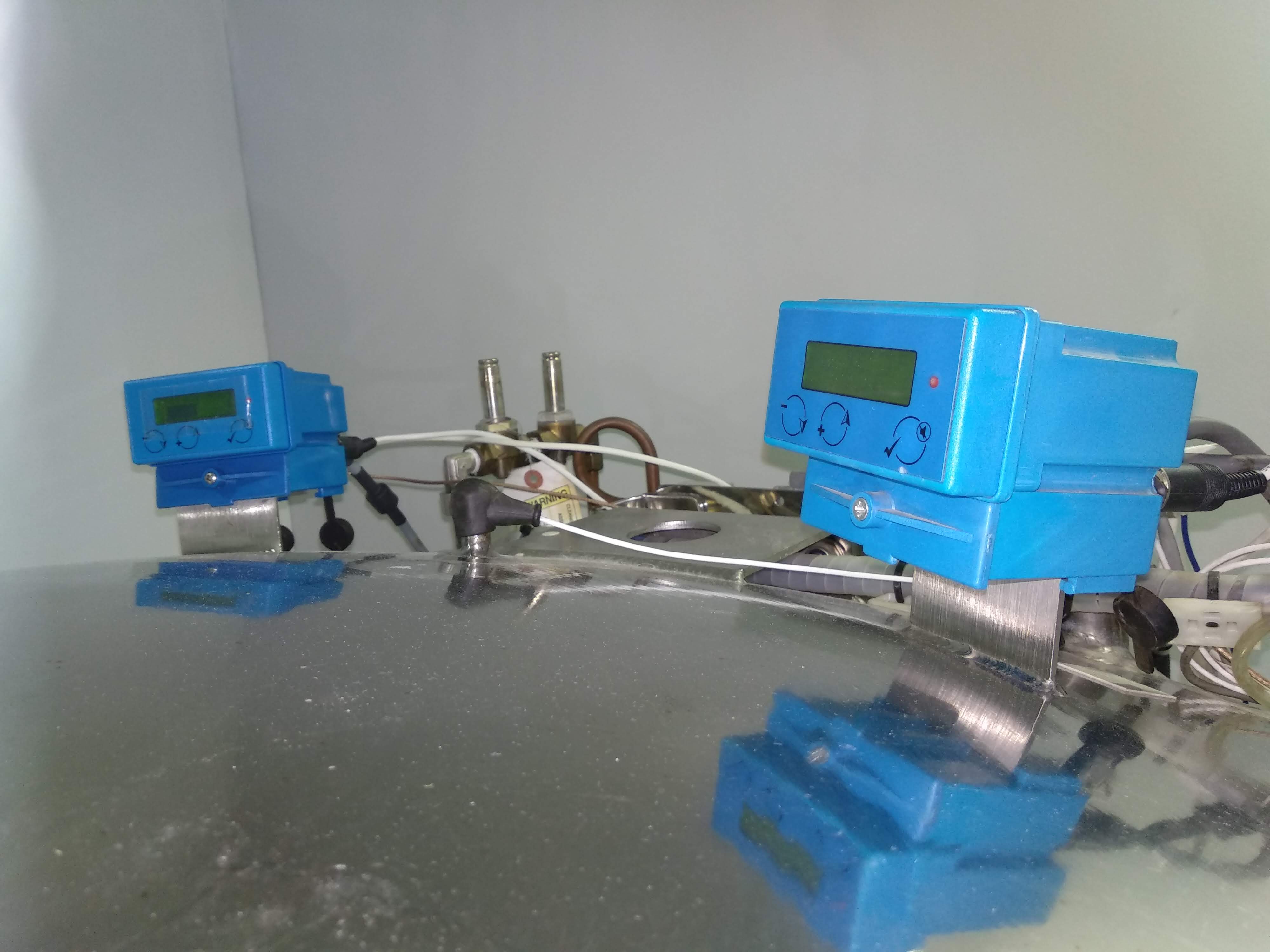

Liquid nitrogen tanks (temperature, level, digital output monitoring)
Lab equipment alarm transmission

Examples

Cryogenic - liguid nitrogen tanks for stem cells / grafts (-180oC)
- Manufacturer: Airliquide

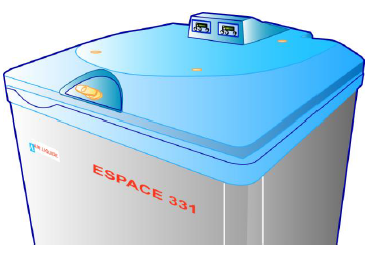

  Models: Espace 151, RCB 600, Arpege 170
- Manufacturer: Baglioni
  Model: CryoBA

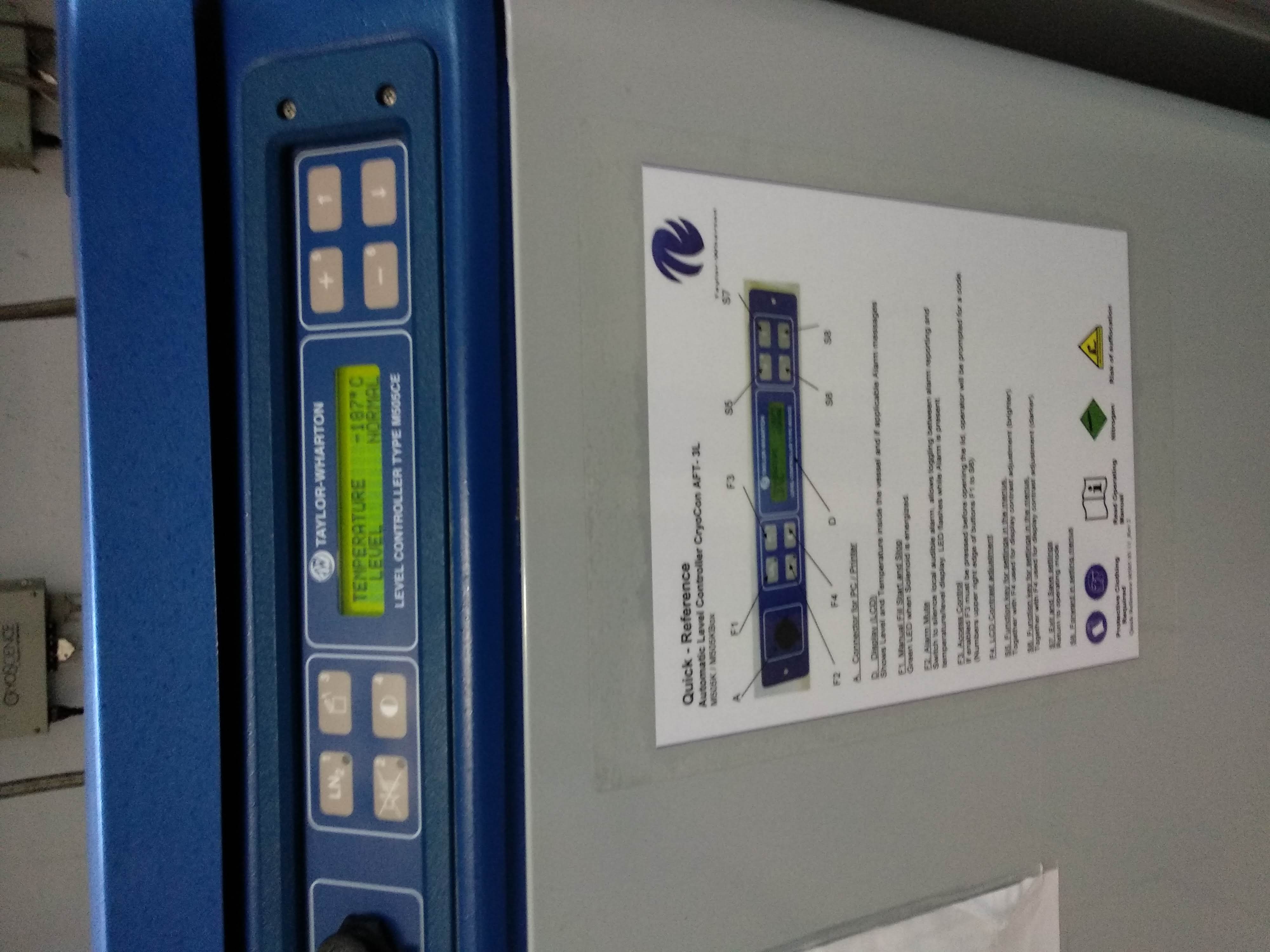

- Manufacturer: Taylor Wharton
  Model: CryoCe24K

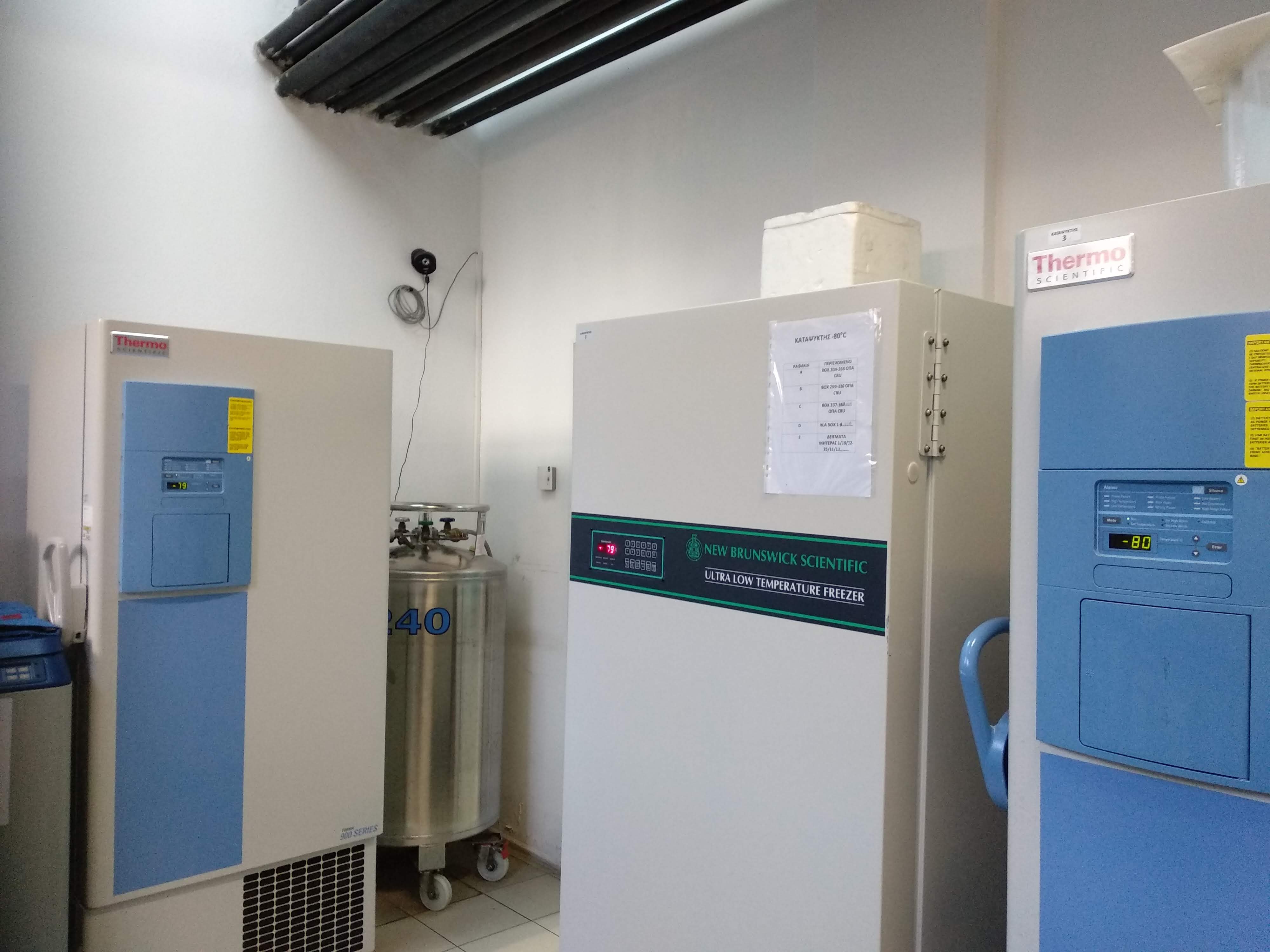

Cryostorage (-80oC)
- Manufacturer: ThermoFisher Scientific
  Models: Thermoforma 700 Series, Thermoforma 7402, Thermoforma 7403

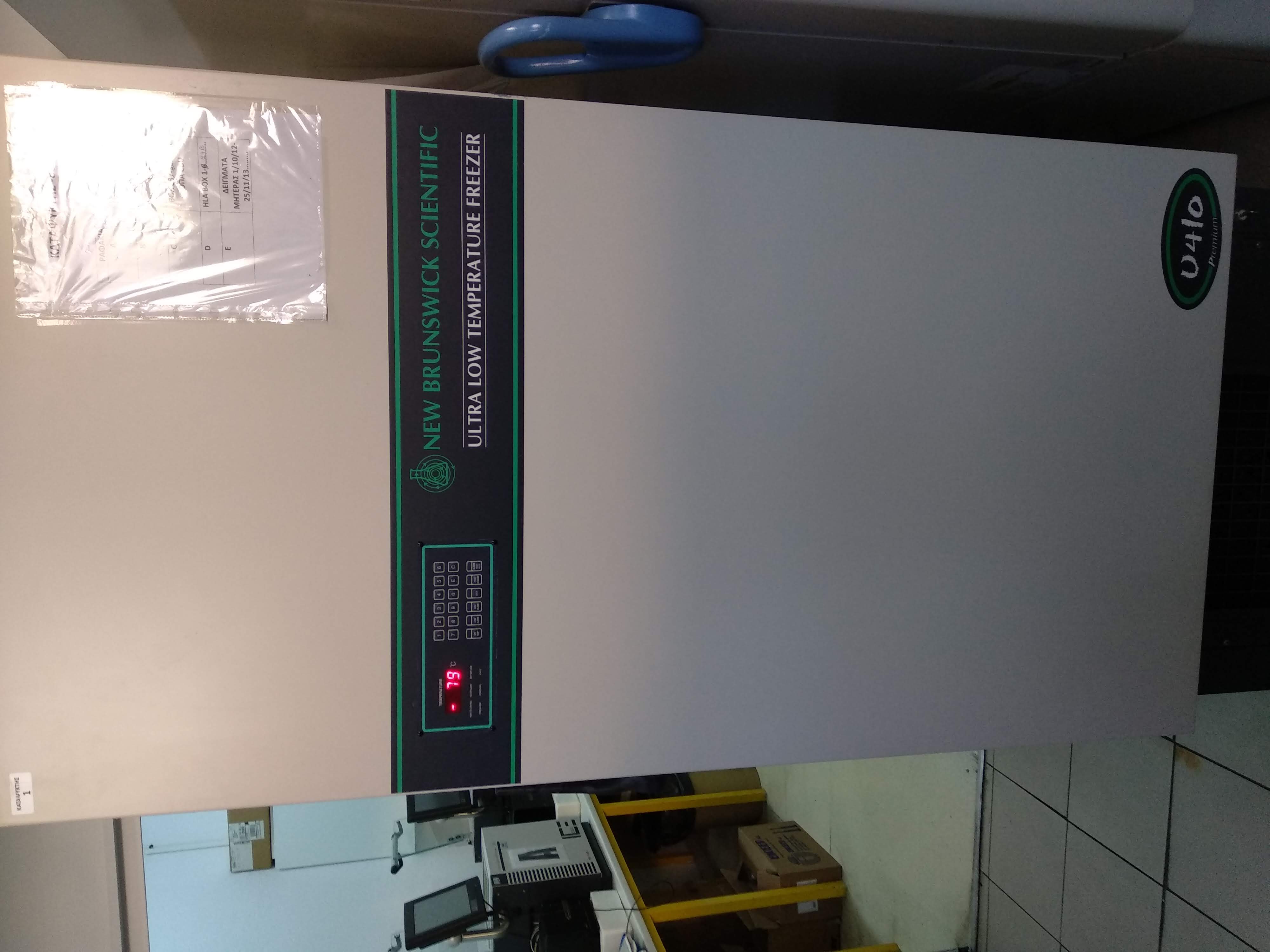

- Manufacturer: NEW BRUNSWICK SCIENTIFIC
  Model: U410

Wireless Connectivity

The wireless connectivity feature of the Meton Lab solution offers significant advantages in laboratory environments, enabling seamless integration with laboratory equipment by utilizing the widely adopted Modbus communication protocol, which traditionally operates over wired connections. Enabled by the Lumenradio W-Modbus Mesh Network Device, our system transforms the standard wired Modbus protocol into a wireless format, establishing a robust mesh network utilizing advanced mesh networking technology.

This wireless functionality streamlines device connectivity, eliminating the need for physical wiring and simplifying installation processes, ensuring reliable data communication between devices. This solution offers a more comprehensive approach compared to the installation of simple wireless sensors, which typically collect only specific data, by providing full device information.

Moreover, in environments such as hospitals, pharmaceutical stores, and laboratories, where space constraints and regulatory restrictions limit the installation of physical cables, wireless connectivity sometimes becomes indispensable. The ability to establish a robust mesh network without the need for intricate cabling infrastructure simplifies installation processes and ensures seamless integration with existing equipment. This not only saves time and resources but also minimizes disruptions to ongoing operations, allowing for uninterrupted scientific activities and research endeavors.

Meton Lab is a gateway to Meterscope Manager Web Portal

A short list of Meterscope Manager Web Portal's benefits:

Immediate outlook of your facilities & equipment through a user friendly interface
Accessible anytime, anywhere, from any device with internet connection
Automated weekly report for each interconnected device of the equipment, pointing out deviations / potential malfunction
Manual data insert when auto recording is not easy or possible ( lab results, pH, etc)
Configurable proper operation rule set (e.g. min temperature -195oC, max temperature -80oC, tolerance 45 minutes / liquid nitrogen minimum level alarm, tolerance 30 minutes)
Personalized / specific alarm notification per rule (e-mail, SMS & phone call) & notification timeschedule
Several easy-to-configure rule set that correlating event severity & alarm notifications (eg email notification for warnings, email & sms for important events, repetitive phone calls for alarms)
Special rules for sensor errors & missing data - Rule combination to avoid false alarms
Complete and integrity protected log file & event log
Configurable recording rate & personilized dashboard
Manual / combined data reports

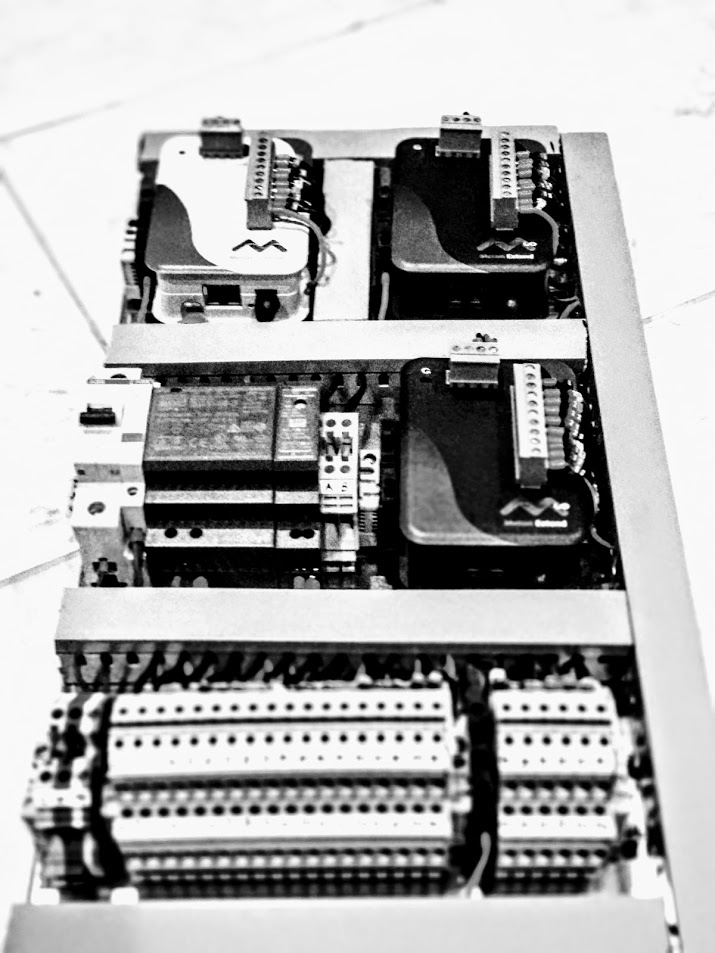

Meton Lab & large scale projects: Hospital equipment, pharmaceutical industry, laboratories

Meton Lab advanced features are able to cover large-scale projects, support specialized & challenging needs and simplify complicated installations in hospitals, pharmaceutical stores, laboratories, graft / stem cell banks etc. It is able to collect data from a wide variety of sensors/lab devices and cover numerous points of interest at the same time; modular architecture design supports easy expansion, wireless links and several security levels in order to protect valuable & vulnerable items (vaccines, grafts / stem cells, medicines etc)

Concentration of heterogeneous data from many points of interest & different rooms / floors, communication with wireless sensors

Lab equipment integration & data from specialized sensors

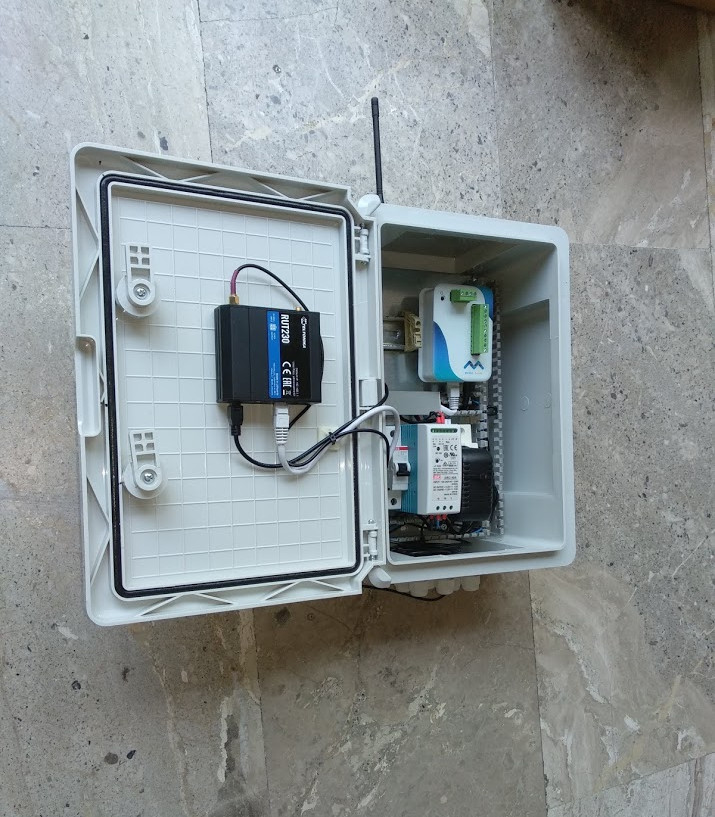

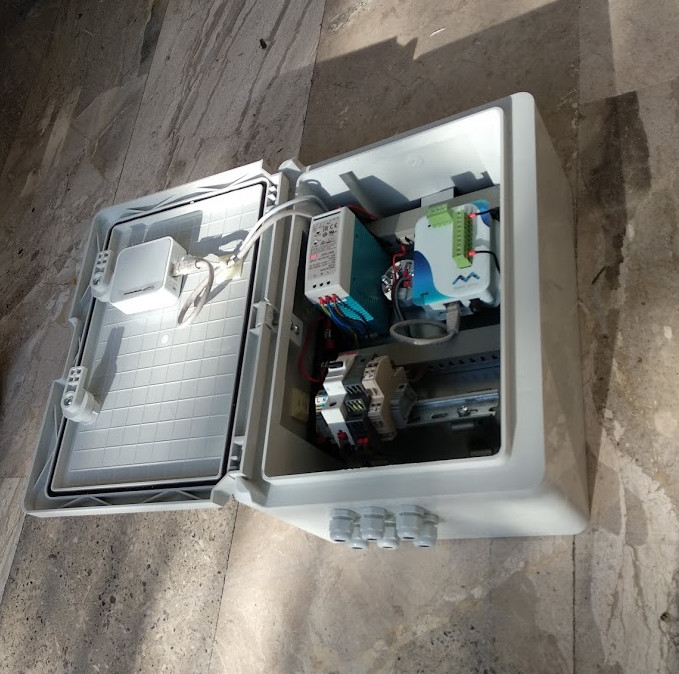

Multiple power supply & WAN communication options for stand alone & fallback situations

Contact us for more information and let us help you design the solution that covers your project's requirements

General characteristics

Description

Temperature and DI (normally open/closed, function) monitoring of cold rooms, refrigerators, freezers and other rooms/devices
Humidity, level, pressure, weight, fluid flow, energy consumption, custom lab equipment, custom sensors
Data from MODBUS connected devices
Proper operation rules & notification configuration through extremely user friendly interface (on a personal computer or tablet)
Alarm notification even when the data logger itself is not working / communicating properly
Data are available online: Very easy data export, event log, realtime overview by any pc/tablet (cloud login)

Immediate Benefits

Saves time - manual logging no longer necessary
Expedites HACCP / ISO protocols' compliance
Temperature (and other) data are easily accessible in case of an unannounced inspection
Assures that cooling rooms, refrigerators, freezers etc are keeping accurately the temperature setinfoscope.gr/en/node/372
Can be connected (through modbus protocol) to device controllers and receive specific data directly from them (e.g. cold room evaporator temperature)
Supports a large number and wide variety of devices
Can monitor the energy consumption of each device / floor / sector / building
Able to also supervise industrial / lab equipment: Machinery, boilers, pasteurizers, generators, super low temperature cooling (e.g. liquid nitrogen tanks etc
Immediate notification in case of malfunction/damage through e-mail/sms/phonecall, regarding the emergency of the event

Special features

Our data logger is preconfigured for you.
No software installation required
Software updates are performed automatically without user interference
Connection with existing equipment (heat pumps, automation etc)
Expandable (additional devices, e.g. for energy metering)
EN12830 compliance for vulnerable product temperature monitoring
Automated weekly report for each interconnected device of the equipment, pointing out deviations / pottential malfunction
Designed in Greece / Produced in the EU

Indicative client list

Cryogenic / Cryostorage system & liquid nitrogen supervision, hospital, laboratory & pharmaceutical industry equipment monitoring, super low temperature data logging

Language English

Ελληνικά

Meterscope Data Collection System

Brief presentation of all the available gateways/data loggers & features

Meterscope Portal - Cold rooms, freezers, refrigerators, curing chambers, kettles, ovens temperature - Level & pressure in tanks, pumping, stations, production lines - Fluid flow: Water, effluent etc - Energy consumption

Meterscope provides compact solutions for small enterprises, supports complicated and large scale modular projects and can be customized to cover specific demands: Meton IoT Devices can be connected to a wide variety of sensors or controllers that support communication protocols and collect the most significant data, depending on each business/industrial sector.

Temperature Data Logger - Meton EASE

Wireless temperature / humididty / digital input data logger for compact application

Temperature / humidity monitoring for up to 2 cold rooms, freezers, refrigerators, curing chambers, storage places etc, along with 2 digital inputs (door open, on/off function etc) & 1 digital output (relay, siren, light)
Local WiFi connection - easy and low cost internet service
Strong Battery / Low consumption: Can function for at least on month without power supply.

Wireless Temperature Gateway - Meton Wireless

Plug & play wireless temperature gateway very easy to install

Monitoring temperature and digital inputs (operational status, door status, etc.) of refrigeration chambers, refrigerators, freezers, product storage areas, and other devices wirelessly.
Sensors communicate via the industrial wireless mBus protocol for greater reliability and energy saving.
Autonomous sensors with the ability to be placed even within chambers and a battery life of up to 14 years!
Data collection from numerous points and easy to expand

Temperature Data Logger - Meton Sense & Sense Plus

Τemperature / humididty / digital input data logger supporting 8 on board inputs and expansion modules

Cold rooms, refrigerators, curing chambers, kettles, ovens and custom equipment temperature
Digital input (normally open/normally closed, function) & outputs (relay, siren, light)
Extensive sensor options (RTDs: Pt100, Pt1000, 2 or 3 wire, Thermistors: NTC or PTC, Thermocouple K, J, generic signal transmitters 4...20mA, 0-10V) for a vast temperature range (-200°C to +1800°C), high metering accuracy and long-distance coverage with the Meton Sense Plus

Meton Sense - Wireless Addon Extra Features

Wireless sensors allowing for extra long battery life (up to 14 years!) &
Industrial communication protocol, providing strong encryption
Long range reception, covering whole building blocks / serveral floors in urban area
Waterproof IP65, polycarbonate cabinet
Autonomous internet connection (3G Modem) for stand alone installation or fallback handling in case of bad network
Power supply back up (UPS) for energy autonomy and monitoring under power outage condition

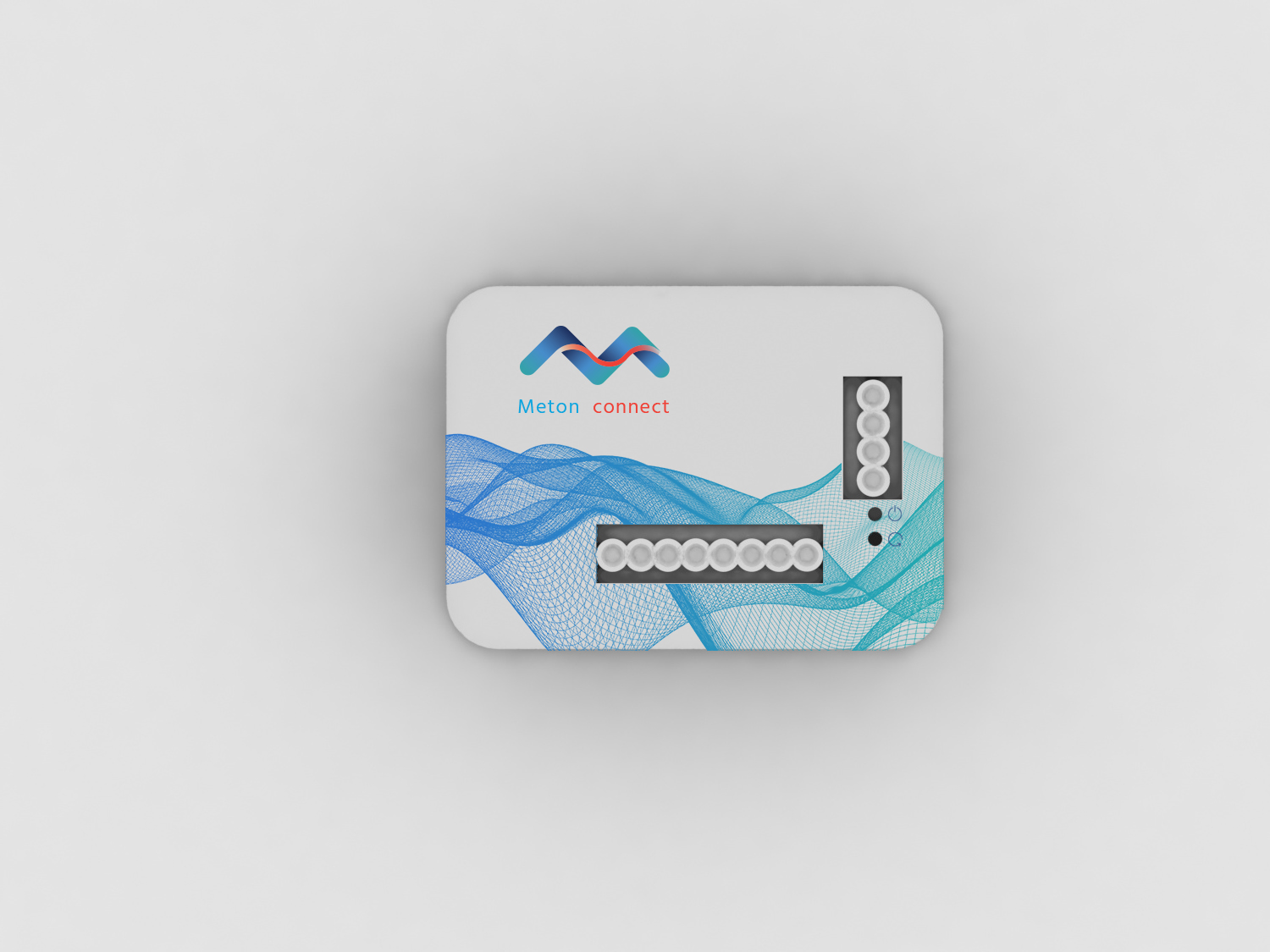

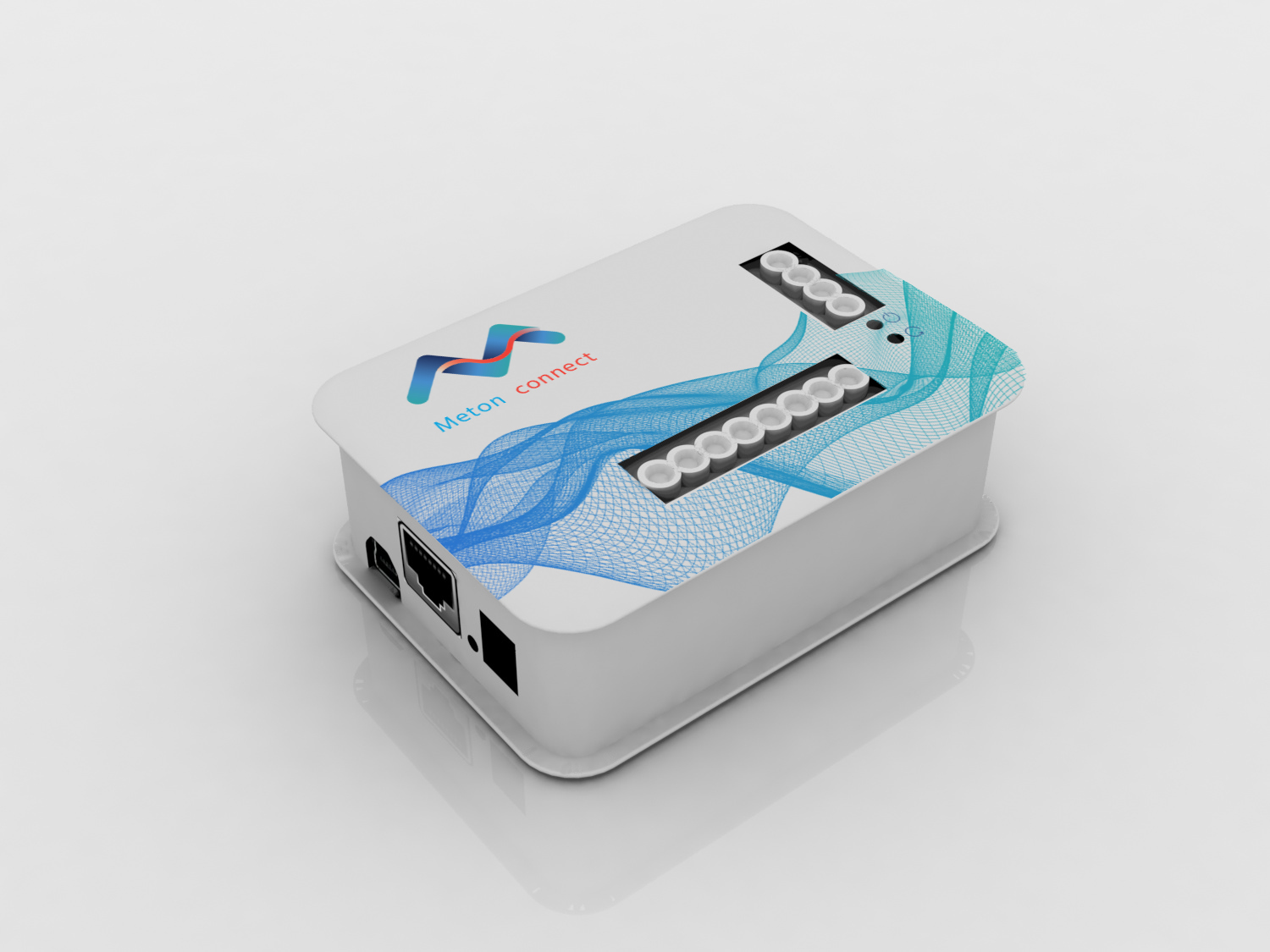

Device Controllers' Gateway - Meton Connect & Connect Plus
