Meton Connect Gateway - Collecting temperature data from interconnected device controllers - Freezers, refrigerators, special / equipment etcMeton IoT Devices can be connected to a wide variety of sensors or controllers that support communication protocols and collect the most significant data, depending on each business/industrial sector.



Wireless temperature / humidity sensors & digital inputs - Cold rooms, freezers, cooling tanks, refrigerators, curing chambers, kettles, ovensMeton Connect - Wireless Edition integrates wireless temperature / humidity sensors & digital inputs. Moreover, it offers multiple power supply & WAN communication options for stand alone & fallback situations



Meton Sense - Wireless Edition - Wireless sensors allowing for extra long battery life (up to 14 years!) & industrial communication protocol providing strong encryption and wide range in order to cover several levels of a buildingWireless sensors allowing for extra long battery life (up to 14 years!) & industrial communication protocol providing strong encryption and wide range in order to cover several levels of a building



English

Meton Connect - Lab Edition gateway: Hospital, lab & pharmaceutical industry equipment monitoring - Cryogenic / Cryostorage system & liquid nitrogen supervision, hospital, laboratory & pharmaceutical industry equipment monitoring, super low temperature data logging, wireless M-Bus & Modbus protocol gatewayMeton Connect - Lab Edition advanced features are able to cover large-scale projects, support specialized & challenging needs and simplify complicated installations in hospitals, pharmaceutical stores, laboratories, graft / stem cell banks etc:

  1. Super low temperature data logging (-40 up to -200 celcium) of high accuracy (up to +/-0.15oC)
  2. Concentration of a great number of registers & devices in several different places
  3. Connection with independent wireless sensors that cover several rooms in different floors: Wide range, superior battery life (up to 14 years!), high security industrial communication protocol.
  4. Lab equipment integration (cryostorage systems, liquid nitrogen tanks etc) that provide analog (temperature, level, etc) & digital (conditions, errors, alarms) output monitoring
  5. Sensors' calibration
  6. Multiple power supply & WAN communication options for stand alone & fallback situations



Meton Connect - Lab Edition gateway: Cryogenic / Cryostorage system & liquid nitrogen supervision, hospital, laboratory & pharmaceutical industry equipment monitoring, super low temperature data logging
English

Meterscope Portal - Cold rooms, freezers, refrigerators, curing chambers, kettles, ovens temperature - Level & pressure in tanks, pumping, stations, production lines - Fluid flow: Water, effluent etc - Energy consumptionMeterscope provides compact solutions for small enterprises, supports complicated and large scale modular projects and can be customized to cover specific demands: Meton IoT Devices can be connected to a wide variety of sensors or controllers that support communication protocols and collect the most significant data, depending on each business/industrial sector.







Meton Ease temperature data logger - Temperature / humidity monitoring for up to 2 cold rooms, freezers, refrigerators, curing chambers, storage places etc, along with 2 digital inputs (door open, on/off function etc)Temperature Data Logger - Meton EASE

Wireless temperature / humididty / digital input data logger for compact application
  • Temperature / humidity monitoring for up to 2 cold rooms, freezers, refrigerators, curing chambers, storage places etc, along with 2 digital inputs (door open, on/off function etc) & 1 digital output (relay, siren, light)
  • Local WiFi connection - easy and low cost internet service
  • Strong Battery / Low consumption: Can function for at least on month without power supply.

Contact us for more information about Meton Sense!

Meton Sense Data Logger - Temperature recording/monitoring - Cold rooms,cooling tanks, freezers, refrigerators, curing chambers, kettles, ovens and custom equipment



Temperature Data Logger - Meton Sense

Τemperature / humididty / digital input data logger supporting 8 on board inputs and expansion modules
  • Cold rooms, refrigerators, curing chambers, kettles, ovens and custom equipment temperature
  • Great variety of sensors (RTDs: Pt100, Pt1000, 2 or 3 wire, Thermistors: NTC or PTC,  Thermocouple K, J,  generic signal transmitters 4...20mA, 0-10V) that can cover an extremely wide temperature range (-200oC, +1800oC)
  • Digital inputs (normally open/normally closed, function) & outputs (relay, siren, light)

Read more about Meton Sense

Cold rooms, freezers, cooling tanks, refrigerators, curing chambers, kettles, ovens and custom equipment modbus connection & data

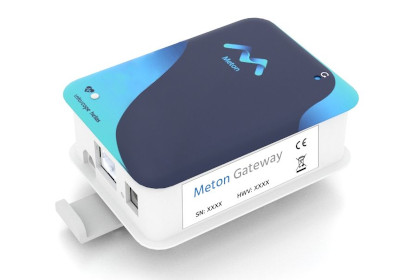

Device Controllers' Gateway - Meton Connect

Collecting data directly from the interconnected devices' controllers
  • Data from interconnected devices that support Modbus / M-Bus protocols
  • Temperature and DI (normally open/closed, function) monitoring of cold rooms, refrigerators, freezers and other rooms/devices. Inteconnection with a wide variety of controllers (Dixell, Pego, Eliwell, etc)
  • Humidity, level, pressure, weight, fluid flow, energy consumption, custom lab equipment, custom sensors

Read more about Meton Connect

Temperature data logger - Thermostat/temperature regulator - Monitoring/Recording temperature, level, pressure, consumption, fluid flow, energy consumption - AI/DI inputs - Independant Local Control



Meton Connect - Control Edition / Meton PLC

Data logger supporting simple local control for compact applications, expandable to PLC for large scale projects
  • Start/stop function commands
  • Thermostat control/Temperature regulation (setpoint) for cold rooms, refrigerators, air conditioning etc
  • Digital Output (defrost, light, siren etc)
  • BMS applications - BACnet IP protocol support for large scale projects, KNX, M-Bus, Modbus, MQTT interconnection to any type of devices
  • HMI/webSCADA local overview, monitoring and notification through Meterscope Manager Web Platform

Contact us for more information about Meton Connect Control Edition - Meton PLC!



Meterscope Portal - Cold rooms, freezers, refrigerators, curing chambers, kettles, ovens temperature - Level & pressure in tanks, pumping, stations, production lines - Fluid flow: Water, effluent etc - Energy consumption
English
Wireless Modbus Mesh - Lumenradio W-Modbus Device. RS485, Modbus RTU and BACnet MS/TP master/slave transparent industrial networkWith LumenRadio’s technology, it is possible to create a wireless Modbus RTU system or a BACnet mesh network that maintains the standard and interoperability of each protocol, while still keeping a low latency. We have integrated these solutions into our Meton Conect data logger.



Through our collaboration with collaboration with Lumenradio, we provide our industrial wireless network solution using Wireless Modbus RTU protocol.



More specifically, we provide the Modbus RTU W-Modbus that eliminates the need to run control cables for Modbus RTU installations, significantly reducing time-consuming cable installations, installation planning, troubleshooting, and daisy-chaining:

Wireless Modbus Mesh - Lumenradio W-Modbus Device. RS485, Modbus RTU and BACnet MS/TP master/slave transparent industrial network



  • Out-of-the-box installation – just power up and connect to your Modbus device and you are up-and-running.
  • Instant commissioning – 3 simple steps, commissioning the W-Modbus network in minutes.
  • Mesh network – cover an entire building, utilizing the mesh network as your infrastructure.
  • Range – 500 meters (line-of-sight) per hop in the mesh network.
  • Cognitive Coexistence – LumenRadio’s patented technology provides industrial-grade reliability and immunity to interference.
  • Self-optimizing network – the mesh network will always find the best way to send messages through the network between devices.
  • Modular configuration – you no longer need to have the same baud rate in the whole network, supports individual settings for each device.



This video contains a short presentation of the solution.



Meton Connect - Monitoring/Recording temperature, level, pressure, consumption, fluid flow, energy consumption - AI/DI inputs

The W-Modbus tranceiver is fully compatible with Meton Connect IoT datalogger/Modbus Master gateway and Meterscope Web Portal platform.


Read more about Meton Connect and the monitoring of a great variety of devices and specific sensors



Contact us for more information, demo account or invoice!





















Wireless Modbus Mesh - Lumenradio W-Modbus Device. RS485, Modbus RTU & BACnet MS/TP master/slave transparent industrial network
English

Meton Connect - Monitoring/Recording temperature, level, pressure, consumption, fluid flow, energy consumption - AI/DI inputs

Meton Connect - Monitoring/Recording temperature, level, pressure, consumption, fluid flow, energy consumption - AI/DI inputs



English

Meton Sense Data Logger - Temperature record / monitor / log - Freezing/cooling rooms, refrigerators, freezer, curing chambers, kettles, fridges, ovens and custom equipment

















Cold rooms, refrigerators, curing chambers, kettles, ovens and custom equipment temperature and digital input (normally open/normally closed, function) recording & logging



English

Meton Data Logger

What is it?

Meton Data Logger is an integrated system that provides the superision and control of your enterprise's facilities.

How does it work?

Meton Data Logger collects crucial data such as:

Meton Data Logger - Data Colection - temperature, level, pressure, fluid flow, energy consumption, analog / digital output quantities metering & monitoring
English

Meton IoT Devices can be connected to a wide variety of sensors or controllers that support communication protocols and collect the most significant data, depending on each business/industrial sector.

Temperature Data Logger - Thermostat control - Data from interconnected devices' controllers, freezers, refrigerators, curing chambers, storage places etc - Humidity, level, pressure, weight, fluid flow, energy consumption, custom lab equipment, custom sensors - Direct local controlMeton Connect Gateway - Control Edition supports direct local control of interconnected devices, depending on rules and parameters that can be configured remotely.

It serves as a temperature data logger, collects data from interconnected devices' controllers, performs themostat control & temperature regulation (setpoint) and supports digital outputs.

Each Meton is connected to Meterscope Manager Web Portal, which provides a wide variety of tools & features.



English

Meton Sense Data Logger: Accurate & reliable temperature monitoring over a long distance - Temperature recording/monitoring - Cold rooms,cooling tanks, freezers, refrigerators, curing chambers, kettles, ovens and custom equipment

Accurate and reliable temperature monitoring in coldchain applications, very often, requires wired solutions.

When utilizing passive sensors such as thermistors and RTDs, measurement may substantially be affected by the cable itself and shielded cables with low resistance are not that cost efficient.

On the other hand, temperature transmitters (4...20mA or 0...10V) may do the trick with long distances, but similarly their cost can not be always tolerated.



What if there was a temperature sensor/transmitter, combining the benefits of the above? In other words a) be cost efficient and b) robust enough assuring accurate measurements unaffected by EM noise and offsets due to long cables.

We have one!

Our temperature sensors MB1-TSx do exactly that.


With almost 2 decades of exceptional performance in the field, MB1-TSx have always been the prefered sensor from our customers.


Compatible with our IoT datalogger Meton Sense and our Modbus IO extension Meton Extend, MB1-Tsx ensure wired, trouble-free, long length temperature monitoring systems. An accuracy better than +/-0.25oC is easily achieved with Meton and MB1-TSx


Want to try it?

Meton Sense Data Logger: Accurate & reliable temperature monitoring over a long distance - Temperature recording/monitoring - Cold rooms,cooling tanks, freezers, refrigerators, curing chambers, kettles, ovens and custom equipment
English

Meton IoT Devices can be connected to a wide variety of sensors or controllers that support communication protocols and collect the most significant data, depending on each business/industrial sector.

Meton Connect - Lab Edition gateway: Hospital, lab & pharmaceutical industry equipment monitoring - Cryogenic / Cryostorage system & liquid nitrogen supervision, hospital, laboratory & pharmaceutical industry equipment monitoring, super low temperature data loggingMeton Iot data logger / gateway serves as a gateway that supports equipment integration for hospitals, laboratories & pharmaceutical companies: Cryogenic / Cryostorage system & liquid nitrogen supervision, hospital, laboratory & pharmaceutical equipment monitoring, super low temperature data logging etc

Each Meton is connected to Meterscope Manager Web Portal, which provides a wide variety of tools & features.
