Meton Lab & large-scale projects: Hospital equipment, pharmaceutical industry, laboratories

Cryogenic / Cryostorage system & liquid nitrogen supervision, hospital, laboratory & pharmaceutical industry equipment monitoring, super low temperature data logging. Wireless Sensors (wM-Bus), industrial communication protocol integration - Modbus RTU / TCP / ASCII gateway

Meton Lab advanced features are able to cover large-scale projects, support specialized & challenging needs and simplify complicated installations in hospitals, pharmaceutical stores, laboratories, graft / stem cell banks etc

Meton Lab is able to collect data from a wide variety of sensors/lab devices and cover numerous points of interest at the same time; modular architecture design supports easy expansion, wireless links and several security levels in order to protect valuable & vulnerable items (vaccines, grafts / stem cells, medicines etc)

Concentration of heterogeneous data from many points of interest & different rooms / floors, communication with wireless sensors

Great variety of sensors (NTC, Pt100, Pt1000, K, J, thermocouple, 4...20mA, 0-10V) and communication protocols

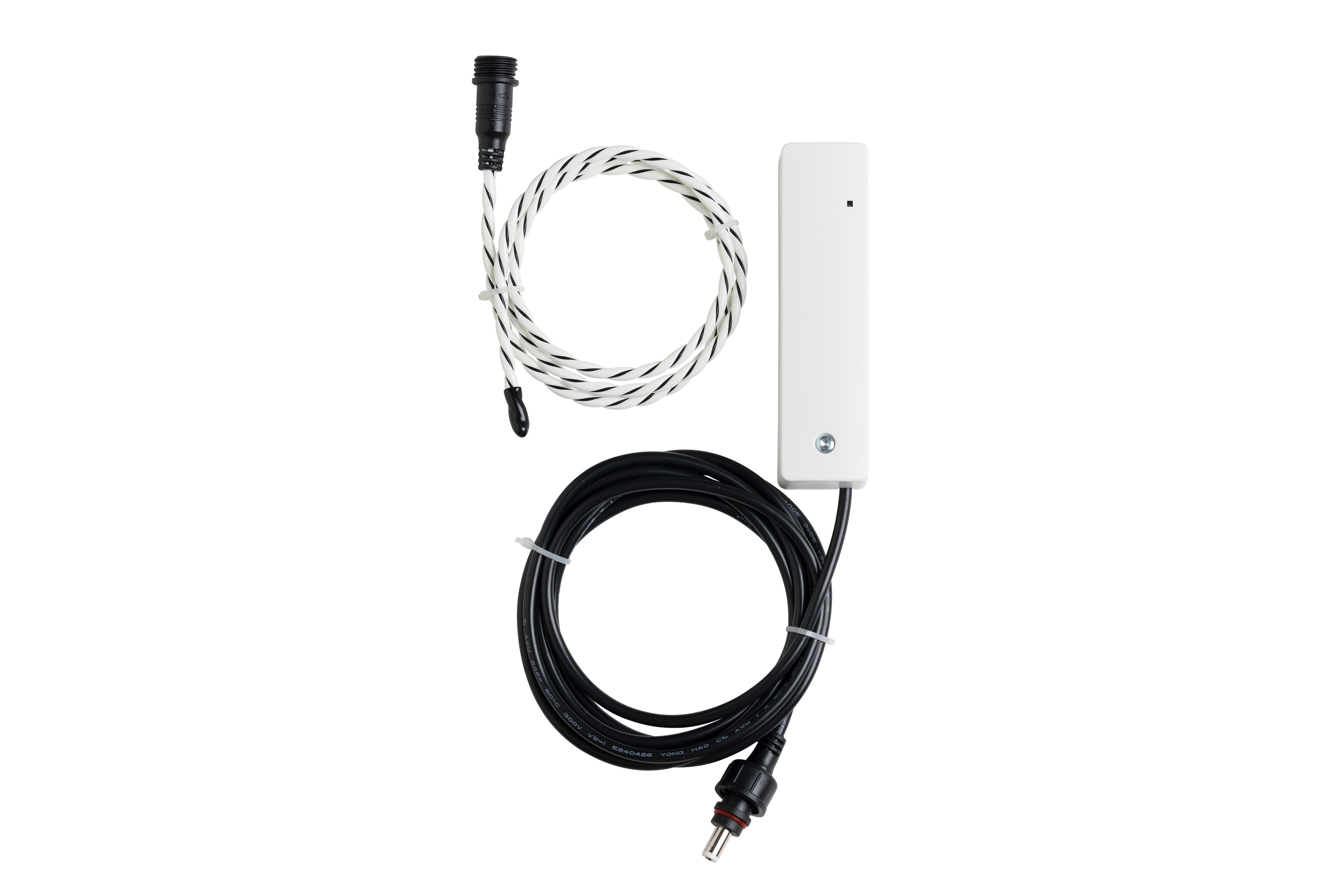

Wireless sensors allowing for extra long battery life (up to 14 years!) & industrial communication protocol providing strong encryption and wide range in order to cover several levels of a building

Centralized data management including numerous registers of different types (room temperature / humidity, cryostorage temperature, lab equipment alarms etc) from many different rooms / floors

Modular architecture, easy to expand

Flexible solution design support providing several options for an optimized combination of wired inteconnected devices and wireless sensors

Lab equipment integration & data from specialized sensors

Interconnection with specialized lab equipment (cryostorage systems, liquid nitrogen tanks etc) - data acquirement and alarm status transmission via e-mail, sms & phonecall
Focus on super low temperature (-40 up to -200 Celcius)
High accuracy sensors up to +/-0.15oC
Calibration of sensors in accredited laboratory

Multiple power supply & WAN communication options for stand alone & fallback situations

Autonomous internet connection (3G Modem) for stand alone installation or fallback handling in case of bad network
Power supply back up (UPS) for energy autonomy and monitoring under power outage condition

The combination of an autonomous internet connection and the power supply back up provides immediate remote alarm / paging / notification in case of a power outage

Meton Lab is accompanied by extra safety features to ensure the protection of valuable and vulnerable items

Preconfigured proper operation rule set
Lack of data & sensor error detection
Multiple safety features, depending on event severity
Configurable recording rate per device
Combined rules flexibility in order to detect complex errors & avoid false alarms

Meton Lab is a gateway to Meterscope Manager Web Portal

A short list of Meterscope Manager Web Portal's benefits:

Immediate outlook of your facilities & equipment through a user friendly interface
Accessible anytime, anywhere, from any device with internet connection
Automated weekly report for each interconnected device of the equipment, pointing out deviations / potential malfunction
Manual data insert when auto recording is not easy or possible ( lab results, pH, etc)
Configurable proper operation rule set (e.g. min temperature -195oC, max temperature -80oC, tolerance 45 minutes / liquid nitrogen minimum level alarm, tolerance 30 minutes)
Personalized / specific alarm notification per rule (e-mail, SMS & phone call) & notification timeschedule
Several easy-to-configure rule set that correlating event severity & alarm notifications (eg email notification for warnings, email & sms for important events, repetitive phone calls for alarms)
Special rules for sensor errors & missing data - Rule combination to avoid false alarms
Complete and integrity protected log file & event log
Configurable recording rate & personilized dashboard
Manual / combined data reports

Third party devices that already have been interconnected with Meton Lab include equipment from several manufacturers, such as Airliquide (Espace 151, RCB 600, Arpege 170), Baglioni (Cryoba), Taylor Wharton (CryoCe24K), ThermoFisher Scientific (Thermoforma 700 Series, Thermoforma 7402, Thermoforma 7403), NEW BRUNSWICK SCIENTIFIC (U410) and the list is constantly growing when each new project is completed.

Read more about Meton Lab

Contact us for more information and let us help you design the solution that covers your project's requirements

Indicative client list

Meton Lab gateway: Cryogenic / Cryostorage system & liquid nitrogen supervision, hospital, laboratory & pharmaceutical industry equipment monitoring, super low temperature data logging

Product&Services Tag:

Language English

Ελληνικά

Meterscope Data Collection System

Brief presentation of all the available gateways/data loggers & features

Meterscope Portal - Cold rooms, freezers, refrigerators, curing chambers, kettles, ovens temperature - Level & pressure in tanks, pumping, stations, production lines - Fluid flow: Water, effluent etc - Energy consumption

Meterscope provides compact solutions for small enterprises, supports complicated and large scale modular projects and can be customized to cover specific demands: Meton IoT Devices can be connected to a wide variety of sensors or controllers that support communication protocols and collect the most significant data, depending on each business/industrial sector.

Temperature Data Logger - Meton EASE

Wireless temperature / humididty / digital input data logger for compact application

Temperature / humidity monitoring for up to 2 cold rooms, freezers, refrigerators, curing chambers, storage places etc, along with 2 digital inputs (door open, on/off function etc) & 1 digital output (relay, siren, light)
Local WiFi connection - easy and low cost internet service
Strong Battery / Low consumption: Can function for at least on month without power supply.

Wireless Temperature Gateway - Meton Wireless

Plug & play wireless temperature gateway very easy to install

Monitoring temperature and digital inputs (operational status, door status, etc.) of refrigeration chambers, refrigerators, freezers, product storage areas, and other devices wirelessly.
Sensors communicate via the industrial wireless mBus protocol for greater reliability and energy saving.
Autonomous sensors with the ability to be placed even within chambers and a battery life of up to 14 years!
Data collection from numerous points and easy to expand

Temperature Data Logger - Meton Sense & Sense Plus

Τemperature / humididty / digital input data logger supporting 8 on board inputs and expansion modules

Cold rooms, refrigerators, curing chambers, kettles, ovens and custom equipment temperature
Digital input (normally open/normally closed, function) & outputs (relay, siren, light)
Extensive sensor options (RTDs: Pt100, Pt1000, 2 or 3 wire, Thermistors: NTC or PTC, Thermocouple K, J, generic signal transmitters 4...20mA, 0-10V) for a vast temperature range (-200°C to +1800°C), high metering accuracy and long-distance coverage with the Meton Sense Plus

Meton Sense - Wireless Addon Extra Features

Wireless sensors allowing for extra long battery life (up to 14 years!) &
Industrial communication protocol, providing strong encryption
Long range reception, covering whole building blocks / serveral floors in urban area
Waterproof IP65, polycarbonate cabinet
Autonomous internet connection (3G Modem) for stand alone installation or fallback handling in case of bad network
Power supply back up (UPS) for energy autonomy and monitoring under power outage condition

Device Controllers' Gateway - Meton Connect & Connect Plus

Collecting data directly from the interconnected devices' controllers

Recording of data (temperature, operational status of individual components, digital contacts) of cooling control devices, refrigeration chambers, refrigerators, freezers, product storage areas, etc. Interfacing with a variety of controllers (e.g., Dixell, Pego, Eliwell, LAE, etc.) widely used in professional spaces that support the Modbus Protocol
Monitoring of energy data (energy consumption, power, network voltage, current) in conjunction with a smart energy meter
Capability to collect analog/digital data from integrated sensors with Meton Connect Plus

Advanced Recording System - Meton Prime

Specialized data collection system

Recording of data (temperature, humidity, level, pressure, energy consumption, power, voltage/current, status of individual components, digital contacts) from cooling units, heating systems, transmitters, cooling towers, boiler rooms, etc.
Integration with a variety of controllers, specialized devices, and PLCs
Ability to collect analog/digital data from specialized sensors (liquid flow, hydrometry data, conductivity, ethylene concentration, heat pump operation, specialized scales, etc.)

Explore Meton Prime, for measurement and data recording from sensors of all types.

Laboratory Equipment Monitoring Gateway - Meton Lab

Data Collection Recorder for Laboratory / Medical Equipment

Data recording (temperature, level, operational status, digital contacts, alarms) of laboratory devices, ultra-freezers, etc., in hospitals, pharmacies, stem cell / graft banks, etc.
Measurement accuracy up to +/- 0.15oC with specialized sensors and focus on temperatures from -40 to -185 degrees Celsius
Interface with models of ultra-freezers and liquid nitrogen containers for the storage of stem cells/grafts (e.g., ThermoFisher Scientific Thermoforma 700 Series / 7402 / 7403, NEW BRUNSWICK SCIENTIFIC U410, Airliquide Espace 151 / RCB 600 / Arpege 170, Baglioni CryoBA, Taylor Wharton CryoCe24K, etc.)
Enhanced device connectivity and simplified installation processes through wireless integration, leveraging the widely adopted Modbus communication protocol and transforming traditional wired setups into a seamless wireless mesh network

Read more about Meton Lab
